- On-board survey of the cargo hold ventilation system. Measurement of duct volume flow rates and temperature distribution within the cargo holds.
- Installation of temperature measurement sensors at proper locations of the vessel’s cargo holds and validation of temperature temporal variation during an actual voyage.
![Ventilation System Ventilation System](https://www.naval-dme.com/wp-content/uploads/pages/services/ventilation-upgrade/ventilation-system1.png)
![Ventilation System Ventilation System](https://www.naval-dme.com/wp-content/uploads/pages/services/ventilation-upgrade/ventilation-system2.png)
Improving the ventilation system performance for additional reefer containers carriage

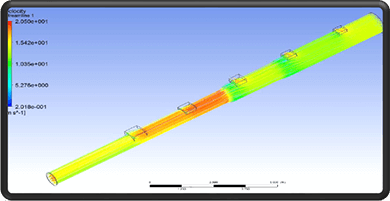

- 3D modelling of each cargo hold. Conduction of CFD analyses for calculating temperature distribution and air flow velocity. Check for hot spots. Evaluate the additional ventilation capacity needed.
- Calculation of the required ventilation capacity according to Class rules. Identification of proper locations of the ventilation ducts by conducting CFD analysis.
- Design of modified final duct arrangement. Selection of appropriate fans. Finalisation of the proposed solutions. Preparation of technical documentation/drawings. Investigation of compliance of the proposed solutions with Class regulations.
![Ventilation System Ventilation System](https://www.naval-dme.com/wp-content/uploads/pages/services/ventilation-upgrade/ventilation-system5.png)
![Ventilation System Ventilation System](https://www.naval-dme.com/wp-content/uploads/pages/services/ventilation-upgrade/ventilation-system6.png)
![Ventilation System Ventilation System](https://www.naval-dme.com/wp-content/uploads/pages/services/ventilation-upgrade/ventilation-system7.png)
