BLK 360 KEY FEATURES

BLK360 - Portability
BLK360 -Easy of Use
BLK360 - Thermal Imaging
BLK360 - Simplified Data Collection

BLK360 PRODUCT SPECIFICATION

GENERAL
Imaging scanner: 3D scanner with integrated spherical imaging system and thermography panorama sensor system

OPERATION
Remote operation: iPad app, Apple iPad Pro®12.9”or 10.5”/iOS10
Wireless communication: Integrated wireless LAN (802.11b/g/n)
Instrument orientation: Upright and upside down

POWER
Battery type: Internal, rechargeable I-ion battery (Leica GEB212)

SCANNING
Distance measu.system: High speed time of flight enhanced by Waveform Digitizing (WFD) technology
Laser class: 1(in accordance with IEC 60825-1:2014)
Field of view: 360°(horizontal)/300°(vertical)
Range: Min. 0.6 – up to 60m
Point measurement rate: Up to 360.000 pts/sec
Ranging accuracy: 4mm@10m/7mm@20m

IMAGING
Camera system: 15Mpixel 3-camera sustem,150Mpx full dome capture,HDR,LED flash calibrated spherical image,360°x300°
Thermal camera: Longwave infrared camera. Thermal panoramic image 360°x70°

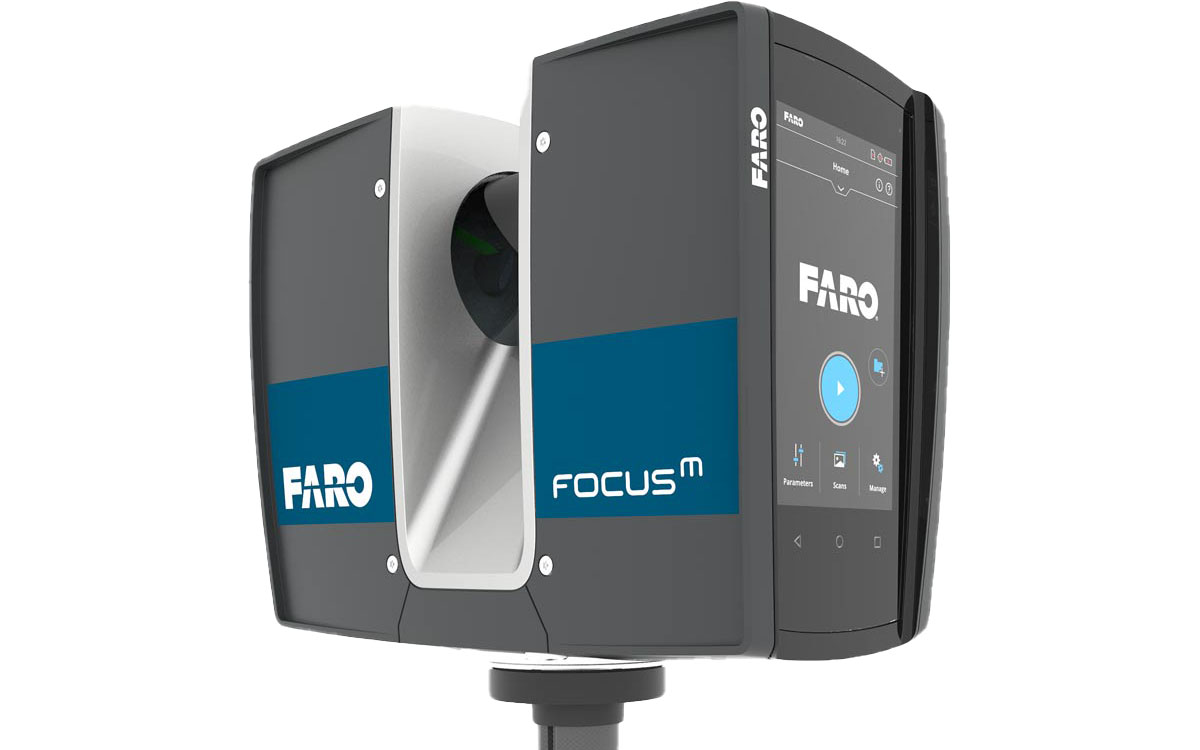

FARO M70 KEY FEATURES

FARO M70 PRODUCT SPECIFICATION

GENERAL
Faro Focus M 70 is laser class 1 with wavelength 1550 nm, a beam divergence on typical 0.3 mrad and beam diameter in the exit of typical 2.12 mm. The scanning distance is placed from 0.6m to 70m. The operating temperature is between 0o to -40o The scanner can orbit 360o horizontal rotation and 300o vertical rotation. The maximum vertical scan speed is 5,820rpm or 97Hz.

OPERATION
Access with mobile through HTMK5.
Wireless communication Integrated a wireless LAN 802.11n (150Mbit/s) with the use of ad-hoc and infrastructure mode.
Data transfer to SD card 32GB. (Registration software Faro Scene )

POWER
Battery Type: Li-Ion rechargeable batteries, battery life 4.5 hours, Charger power supply 100 V AC to 240 V AC and 50/60 Hz.

SCANNING
Laser class: 1 (in accordance with IEC 60825-1:2007)
Field of view: 360°(horizontal) / 300°(vertical)
Range: Min. 0.6m – up to 70m
Point measurement rate: Up to 488.000 pts/sec with accuracy ±3mm
Ranging accuracy: 4mm@10m/7mm@20m
Dual-axis compensator – can level each scan with an accuracy of 0.019° in range ± 2°
An Altimeter determines the altitude higher to 2000m

IMAGING
High Dynamic Range (HDR) imaging method merges images captured with different exposure settings to one image with a greater dynamic range of luminosity.
The scanner is provided with a colorful camera HD High Dynamic Range (HDR) 2x/3x/5x photo recording with a resolution up to 165 MPixels and has a parallax with co-axial design.

Ballast Water Treatment System installation

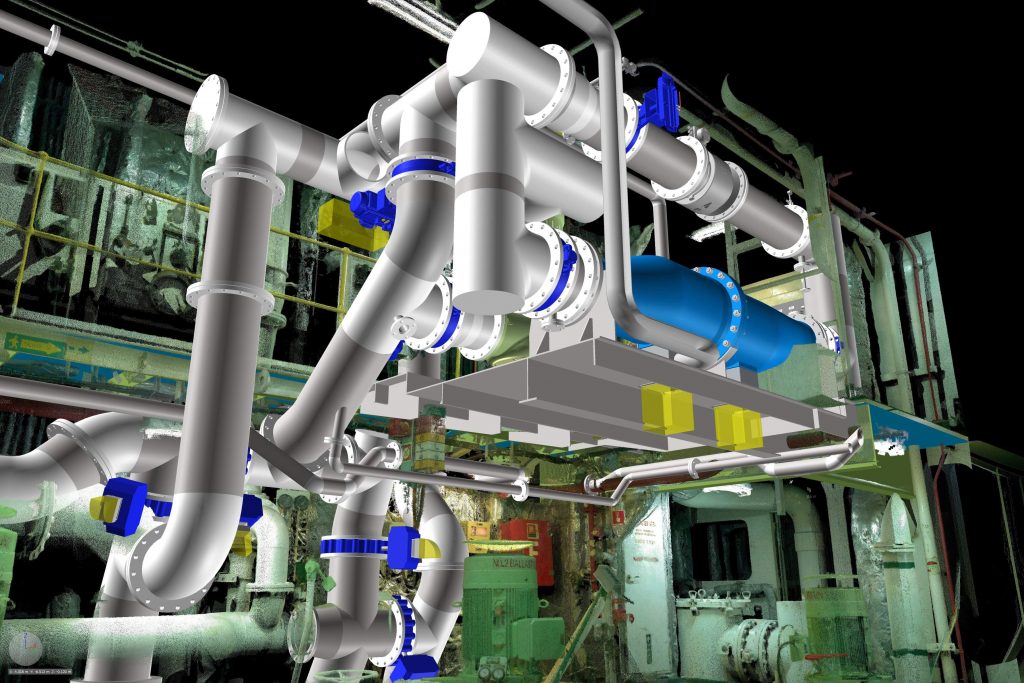

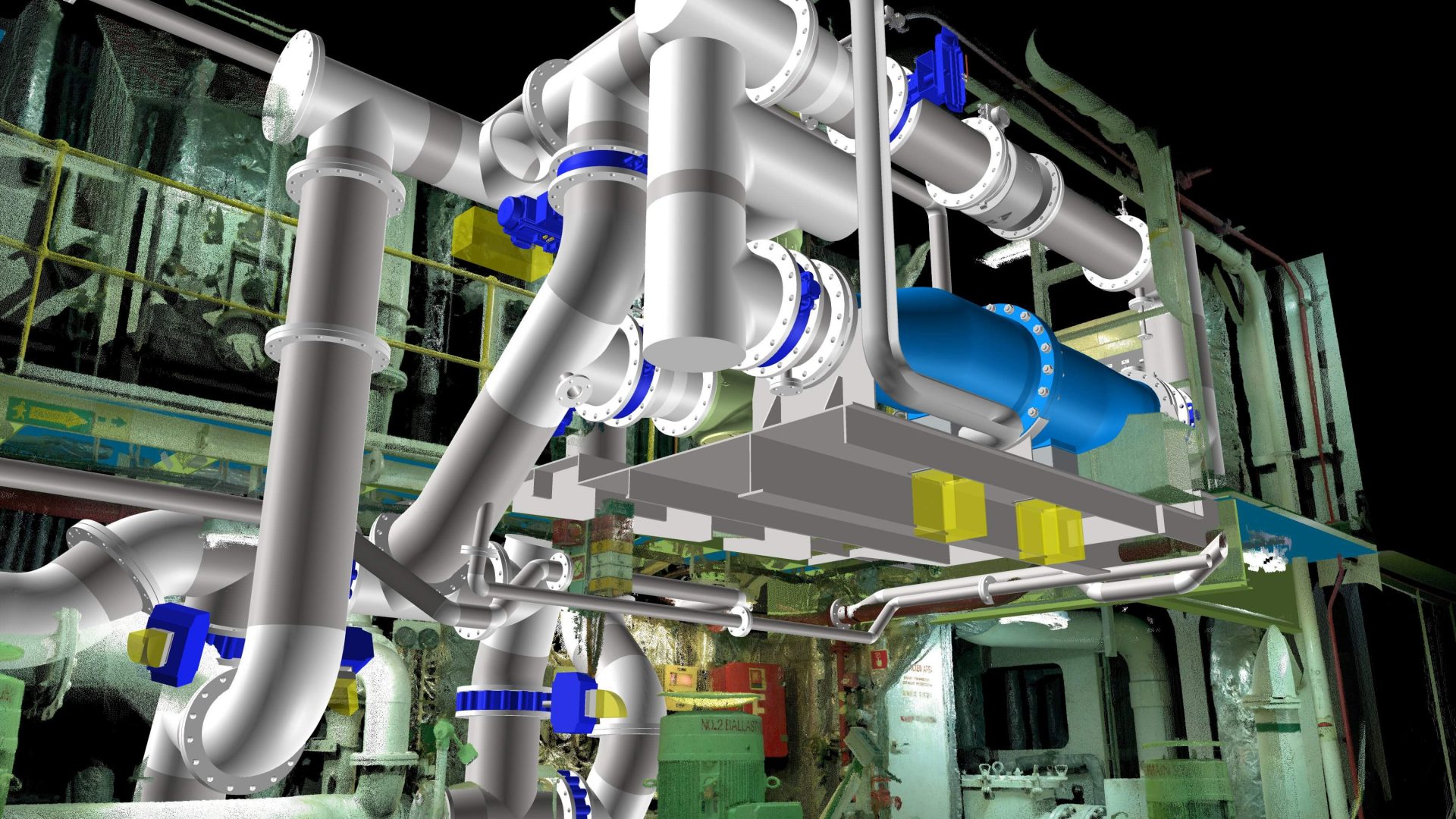

PORT STBD SECTION VIEW SHADED

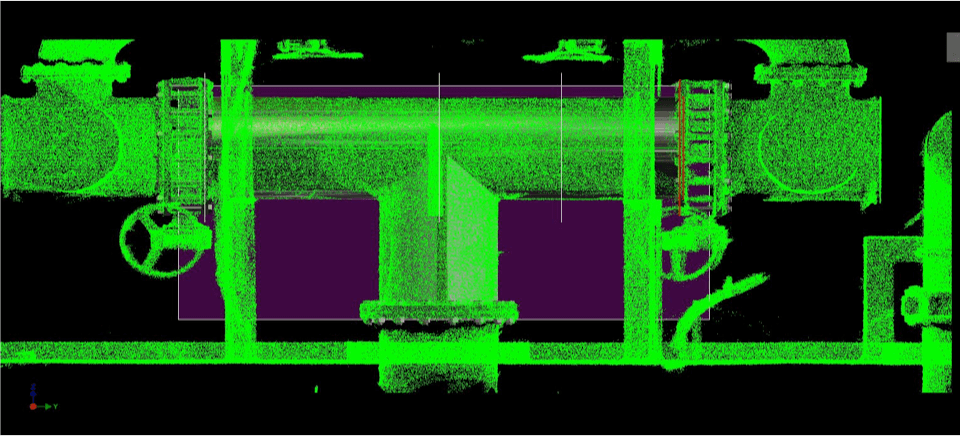

In-service pipe spool replacements

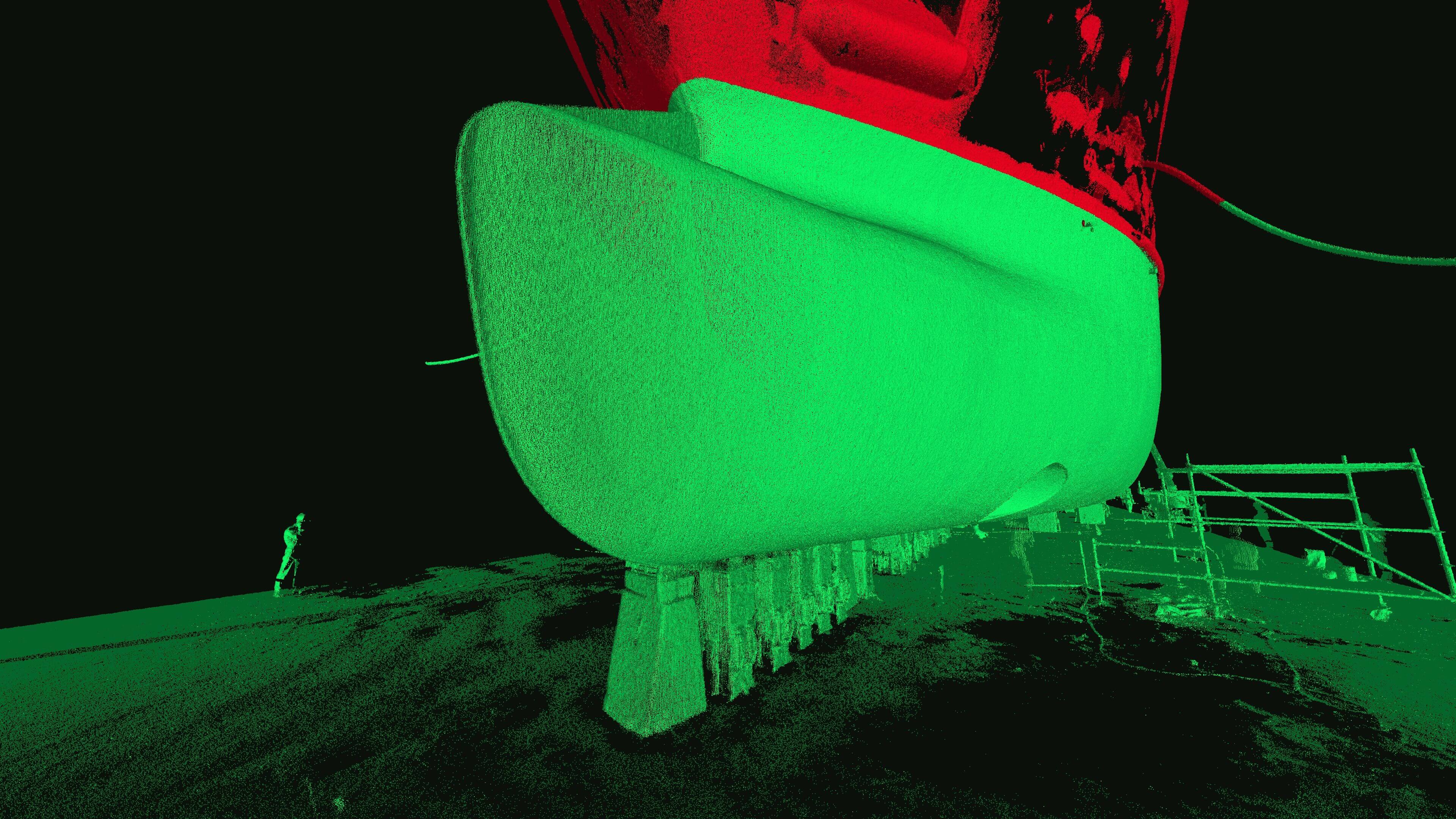

Hull geometry / Production of Lines Plan

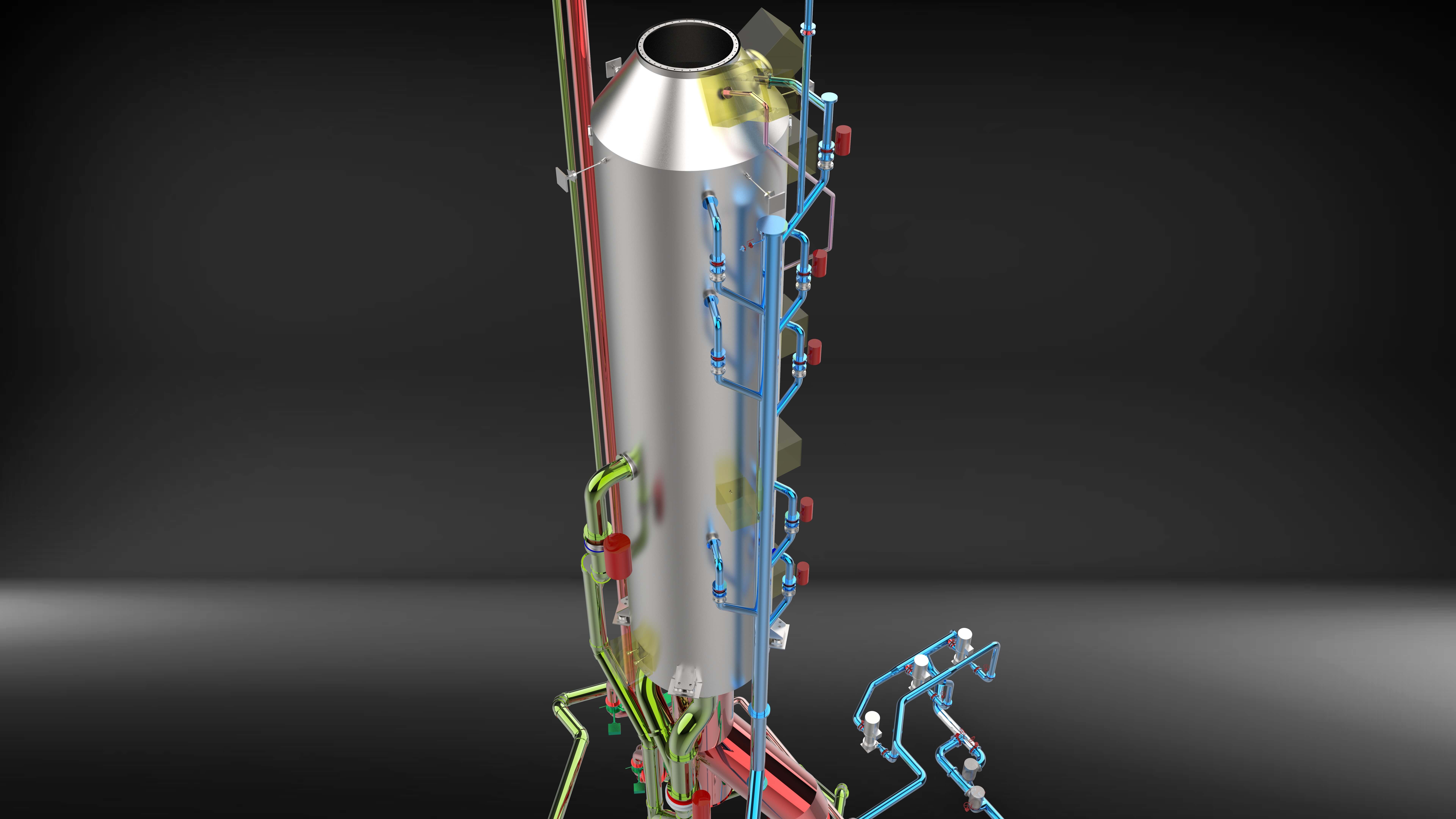

Scrubber System installation

Ventilation upgrade (duct modifications)

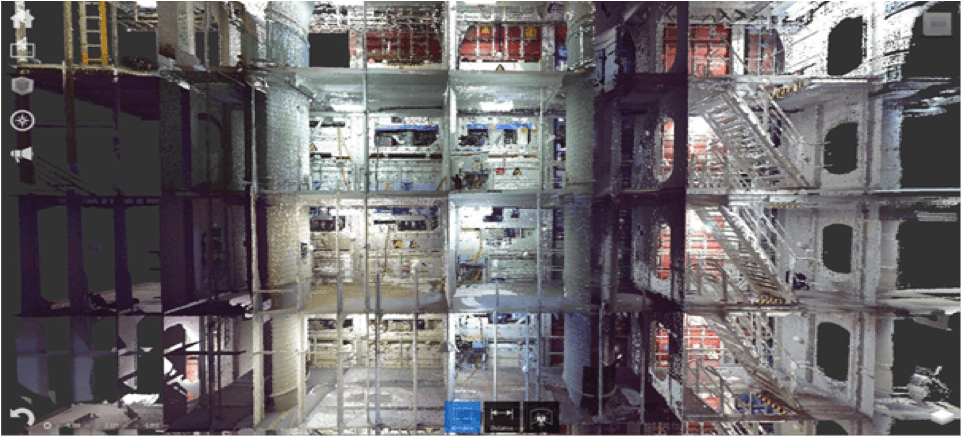

duct modification

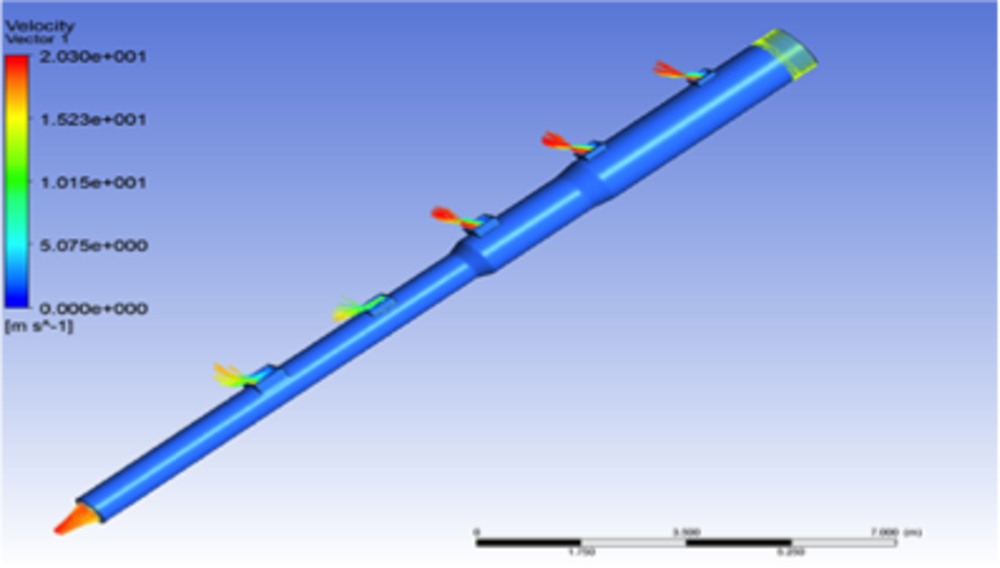

Air Duct

air duct
